Dalla Corte XT Models

$22,500.00 Sale Save
Color Total Black.
Size 2 Group

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

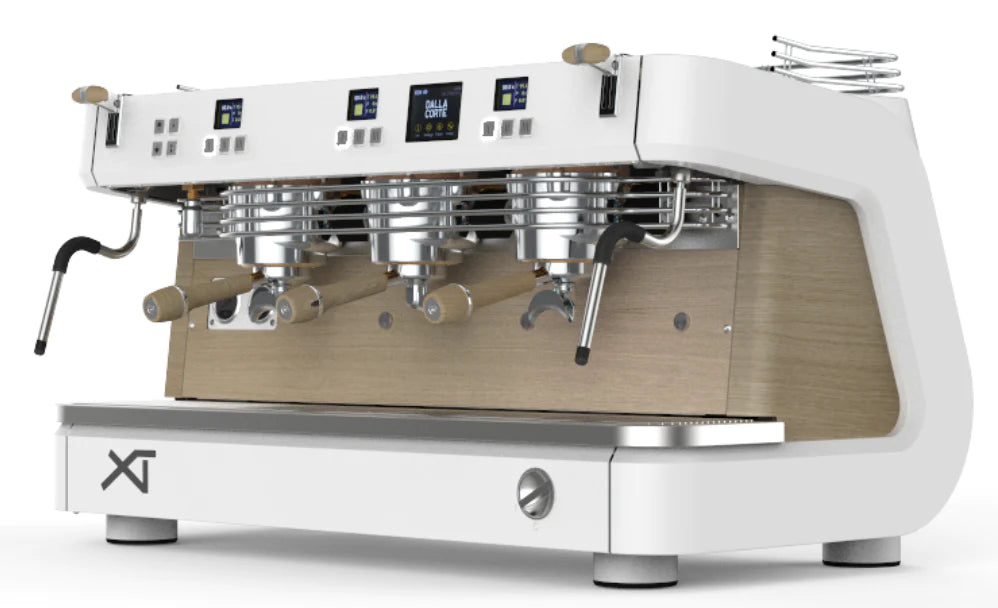

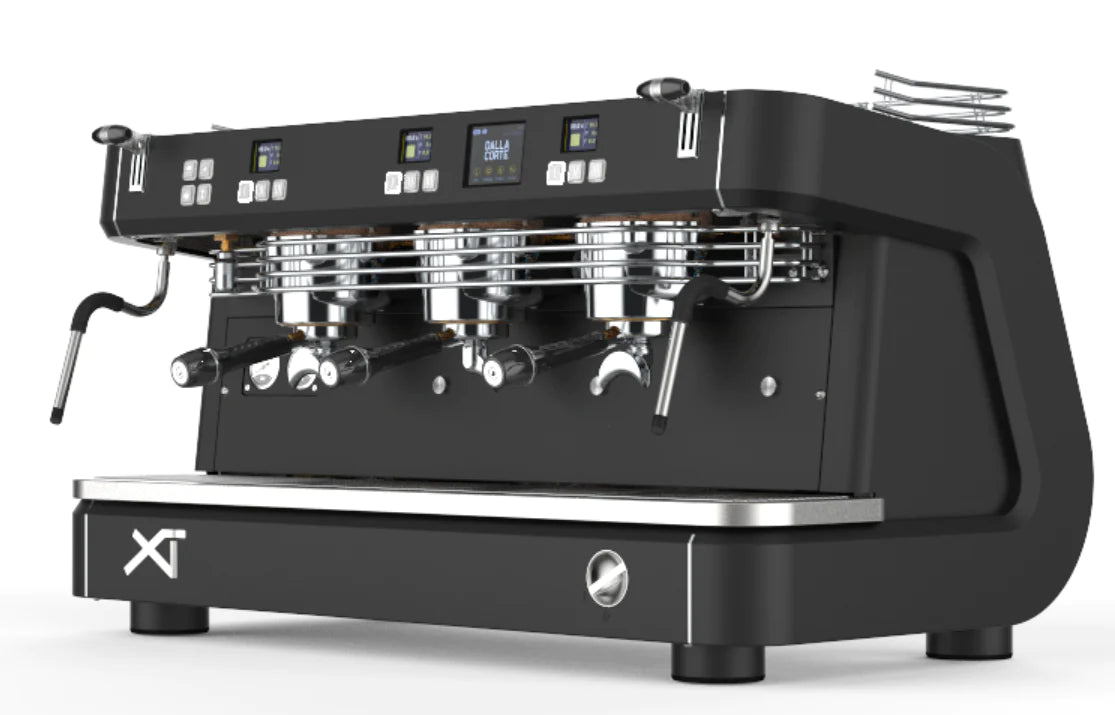

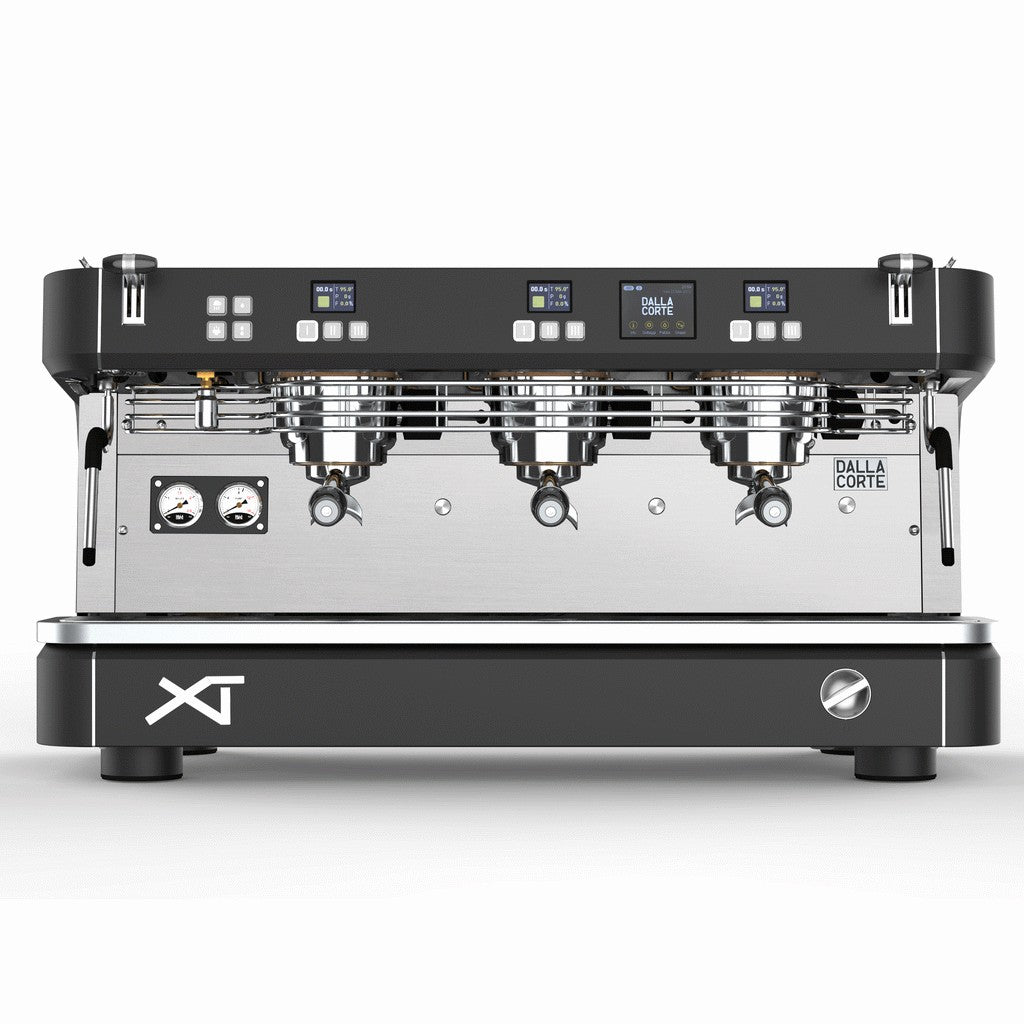

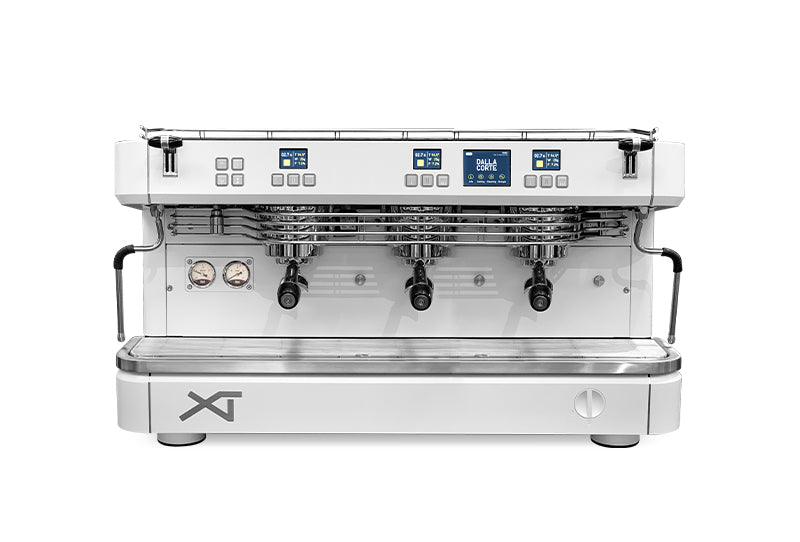

Dalla Corte XT 2 & 3 Group



Includes Free shipping & hook up of your espresso machine with a trained, local representative. Includes, 1 trip for local installation to buyer made ready water, electric, carpentry, drink set up, & demonstration. 2-year parts & 1 year labor due to defective parts.


Ask about our machine, grinder & water filter discount packages.



The XT - Designed for Baristas! The XT name resonates precision, consistency and creativity, that’s what makes it stand out,

The possibility of customizing extraction recipes, creating a unique vision of coffee and always maintaining full control over the extraction.

The Dalla Corte XT espresso machine with its independent brew groups offering PID temperature-controlled thermostat for exacting water temperature, water pressure flow control, and extraction weight for obtaining exacting taste and specific brew profiles.

A variety of taste profiles can be created from both single origin & blended coffees for up to three different taste profiles can be secured.

The XT is compatible with Dalla Corte’s self-adjusting grinders GCS and MCS technology, the XT can take the guesswork out of grinding and frothing with its optional automatic steam wand for an incredibly efficient workplace.

Dalla Corte’s XT espresso machine pushes the boundaries of espresso coffee technology. By combining Dalla Corte’s signature Multi-Boiler System with their recent innovations in flow control, and a real time weight control system, each of the XT’s three groups can be programmed with a unique temperature, extraction weight, and flow. This unparalleled degree of control enables baristas the flexibility to dial in specific brew recipes on a per-group basis, all the while benefiting from this high-capacity output espresso machine. Enabling this sort of precise control first requires unwavering stability, starting with temperature.

The Multi-Boiler System is Dalla Corte’s answer to maintaining independent brew temperature stability.

Each of the XT’s groups houses a 0.5 L boiler, each with its own PID and heating element. This means the water is never shared between the brew boilers or the steam boiler so each can be counted on to maintain its own unique temperature under any condition.

The boilers can also be toggled on and off in the configuration of your choice or for energy savings at slow or busy times or Maintenace needs.

For flow control, a manual valve is incorporated in the water line of each group. By removing its corresponding valve cap, the flow of water to each group can be regulated and set between 4 - 12g of water per second. To adjust flow, simply remove the cap and insert an Allen key to adjust to your desired flow rate. Your changes can be reviewed on the corresponding screen above the group before replacing the valve cap.

Varying flow between groups allows you to offer varying degrees of pre-infusion and affect the contact time between your water and your coffee.

The final piece of the puzzle is the Real Time Weight Control system. By measuring the flow of water in grams, the XT’s groups can each be programmed to dispense a specific amount of water at the touch of a button. By measuring the amount of espresso flowing into your cup, this unique feature eliminates the need to use a scale when pulling a shot of espresso. In this way the XT offers weight based brewing options while reducing the cost and clutter of accessories.

Other features that round out the XT’s user experience are its compatibility with Dalla Corte’s other ingenious technologies, the GCS (Grinder Control System) and MCS (Milk Control System).

The GCS tethers your XT to a Dalla Corte DC One or DC Two grinder, feeding them information about the flow of your espresso to automatically recalibrate your grind as necessary.

The MCS is an automatic milk frothing system that can froth milk to your desired temperature, allowing your baristas to focus on other tasks. This optional feature must be requested prior to ordering.

With XT Dalla Corte puts its best foot forward in combining commercial capacity with the most advanced brewing innovations on the market. The precise control of brewing variables married with labor saving innovations like the GCS unlocks the true potential of baristas, unfettered by restrictions to their time or creativity.

 2 Groups Specifications

Dimensions (W x H x D) 28 x 20 x 21

Weight 163 Lb.

Energy consumption 7,9 kW / 24 Hr. Stand By 7,500 watts.

Maximum power 4,5 kW -4,500 Watts

Connected load 230/240 V

Boiler capacity 7,5 l

Group capacity 0,5 l

Brew Group Size (mm) 54mm / 58 mm optimal

included Backlight

3 Groups Specifications

(Lx H x W) 37.5-inch x 20.6-inch x 20.1 inch

Weight 194 Lb.

Energy consumption 11,3 kW

Maximum power 6,3 kW

Connected load 230/240 V 1 Ph, 200/230 V

Boiler capacity 13 Liter

Group capacity 0,5 liter

Brew Group Size (mm) 54mm / 58 mm optimal

Serial connection RS 232/485 Low-power system included.

Timer included.

Backlight. included

Ask about our machine, grinder & water filter package discounts.

Protect your warranty & investment.

Protect your factory warranty and machine from harmful hard water minerals that cause calcium build up, & damage to your boiler, heating elements, water passages, and moving parts. This all in 1 filter is the answer for most hard water conditions.

Help the taste of your coffee with a BMT Bestmax premium 5 stage filter with magnesium for improved coffee taste or the standard 4 stage protection filter. When selecting the premium line with magnesium, we recommend a water meter so you know when it's time to change your filter as magnesium will show as a solid on a test strip.

Dial in the setting 1, 2 or 3 on the BWT filter head to match your water hardness and brew system needs. to get the proper protection & longest life based on degree of water hardness. Just twist the all in one cartridge out of the self-closing valve in head and spin the new replacement one in when needed, no water to shut off or turn on before changing,

The BWT 0.5-micron cartridge can lie sideways, set on its base or hang from the wall bracket included,

Recommended sizes based on water hardness and usage.

See our compete BWT accessories discount packages.

Competitive price matching is available for all our products.

Please complete this form when inquiring about best price for your item.

Defend your factory warranty and machine from destructive hard water minerals leading to calcium buildup, and harm to your boiler, heating elements, water passages, and moving parts. This all-in-1 filter is the solution for many hard water conditions.

Enhance coffee flavor with a BMT Bestmax premium 5 stage filter containing magnesium for improved taste or the standard 4 stage protection filter. For the premium option, consider using a water meter to monitor filter change based on magnesium levels.

Set the dial to 1, 2, or 3 on the BWT filter head to align with water hardness and brewing system needs. Achieve ideal protection and lifespan according to water hardness. Replace cartridges effortlessly without water shutdown.

The BWT 0.5-micron cartridge can rest horizontally, be placed on its base, or be hung from the included wall bracket.

Recommended sizes based on water hardness and usage.

See our compete BWT accessories discount packages.
