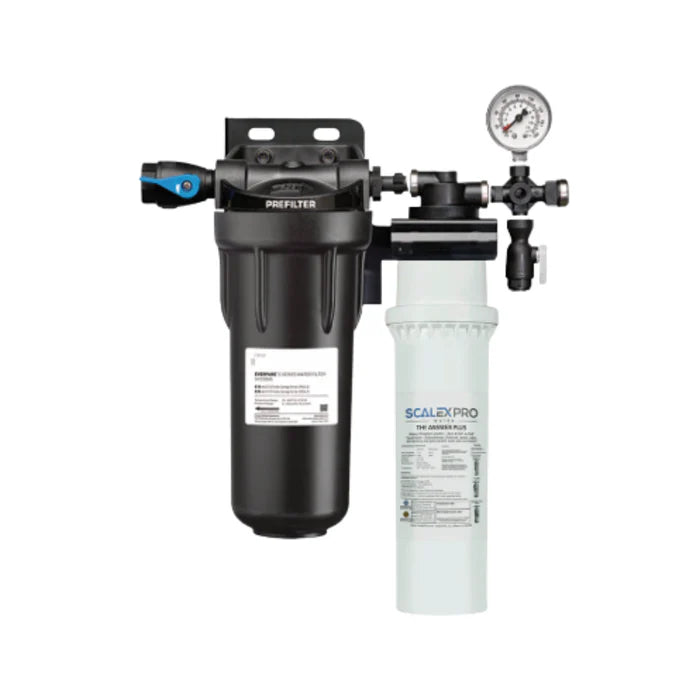

EZ-SXCT-1PNC MULTISTAGE NANOCERAM W/ SCALEX

Introducing the WPD EZ-SXCT-1PNC is a high-performance 2-stage water filtration system designed specifically for commercial coffee and espresso equipment.

Engineered with advanced NanoCeram® pre-filtration and ScaleX CT technology, this system delivers clean, mineral-rich water while effectively reducing sediment, chlorine, chloramines, and both temporary and permanent scale buildup.

Designed for use with Franke A-Series and S700 espresso machines, the EZ-SXCT-1PNC helps extend equipment life, improve beverage quality, and reduce maintenance costs.

Its compact under-counter design makes installation simple while providing powerful protection against hard water issues and corrosion.

Key Features:

• Advanced 2-stage filtration system with NanoCeram® and ScaleX CT technology
• Reduces sediment, chlorine, chloramines, bad taste, and odors
• Prevents and removes temporary and permanent scale buildup
• NanoCeram® 0.2 micron pleated pre-filter captures bacteria, viruses, and cysts
• FILTERSORB® CT media uses Nucleation Assisted Crystallization (NAC) technology
• Maintains beneficial calcium and magnesium minerals for better coffee flavor
• High-efficiency catalytic carbon block with 4x greater monochloramine reduction
• No bypass design ensures 100% water filtration
• Built-in corrosion inhibitor protects plumbing and equipment
• Eco-friendly and chemical-free operation with no salt or phosphates
• Compact under-counter installation design
• Ideal for coffee machines, espresso equipment, combi ovens, boilers, and ice makers
• Compatible with water hardness up to 26 grains
• NSF/ANSI 42 & 53 Certified NanoCeram® filtration technology

Technical Specifications:

• Model: EZ-SXCT-1PNC
• Width: 14.254”
• Depth: 6.13”
• Height: 15.23”
• Filtration Stages: 2 Stage Filter System
• Pre-Filter: CR-2.5X10PLTD-AQ 10” Pleated NanoCeram® 0.2 Micron
• Primary Filter: SXP-12TAP Quick Change TOC Plus CT
• Flow Rate: 1.5 GPM
• Rated Capacity: 17,500 Gallons
• Inlet Connection: 3/4” or 3/8” with adapter
• Outlet Connection: 3/8”
• Pressure Requirement: 30–80 PSI
• Electrical Requirement: None
• Installation Type: Under-counter
• Compatible Equipment: Franke A-Series & S700 Espresso Machines
• Scale Protection: Temporary & Permanent Scale Prevention
• Water Hardness Capacity: Up to 26 grains
• Certifications: NSF/ANSI 42 & 53
• Included Features: Water shut-off, flushing valve, pressure gauge

Perfect for:

• Restaurants
• Roasteries
• Bakeries
• Patisseries
• Bars

• •            NanoCeram® Pleated Pre-Filter Cartridge acts as a Broad Spectrum Particle Magnet. Featuring a thermally bonded blend of microglass fibers & cellulose infused with Nanoalumina fibers in a non-woven matrix. By using the scientific principle of electropositive attraction / capture, NanoCeram® NASA-derived technology leads to a rapid and highly efficient adsorption of virtually all particle sizes larger that 0.2 micron. Reduces or Removes Bacteria, Virus, and Cysts. NSF/ANSi 42 & 53 Certified


  FILTERSORB® CT Media: chemical-free temporary and permanent scale preventor and remover, which utilizes Nucleation Assisted Crystallization (NAC). Effectively inhibits the formation of calciummagnesium scale through encapsulation and crystallization, not sequestration, without changing the pH. Protects the formation of scale based on negatively charged Sulfate, Silicates, Phosphates, Chloride, Bromide, Carbonate, & Hydride (permanent scale) by separating them out to join with the crystallization. • High-Efficiency Catalytic Carbon Block: Delivers 4x greater monochloramine reduction capacity compared to standard activated carbon filters.

  •            Comprehensive Contaminant Removal: Effectively eliminates chlorine, chloramines, bad taste, odors, sediment, dirt, rust, and suspended solids through advanced catalytic carbon filtration.

•            No Bypass Design: Ensures 100% filtration of all incoming water for consistent water quality.

•            Built-in Corrosion Inhibitor: Protects plumbing and equipment from long-term corrosion damage.

•            Powerful Scale Prevention and Removal: Safeguards plumbing fixtures, coffee, espresso and beverage machines, combi ovens, ice makers, boilers, and steam equipment against scale buildup in systems with water hardness up to 26 grains.

•            Biocidal Action: NAC technology generates CO₂ microbubbles that rupture bacterial membranes, reducing biofouling without the use of chemical additives.

•            Health-Conscious Filtration: Maintains calcium and magnesium in the water for improved taste and mineral intake—ideal for Coffee and Espresso applications.

•            Eco-Friendly & pH Neutral: A sustainable, green solution with no salt, no phosphates, and noenvironmental tradeoffs.

•            All Gain, No Tradeoffs: Unlike traditional softeners or polyphosphate systems, this solutionprevents scale without introducing corrosion risks or promoting bacterial growth.
