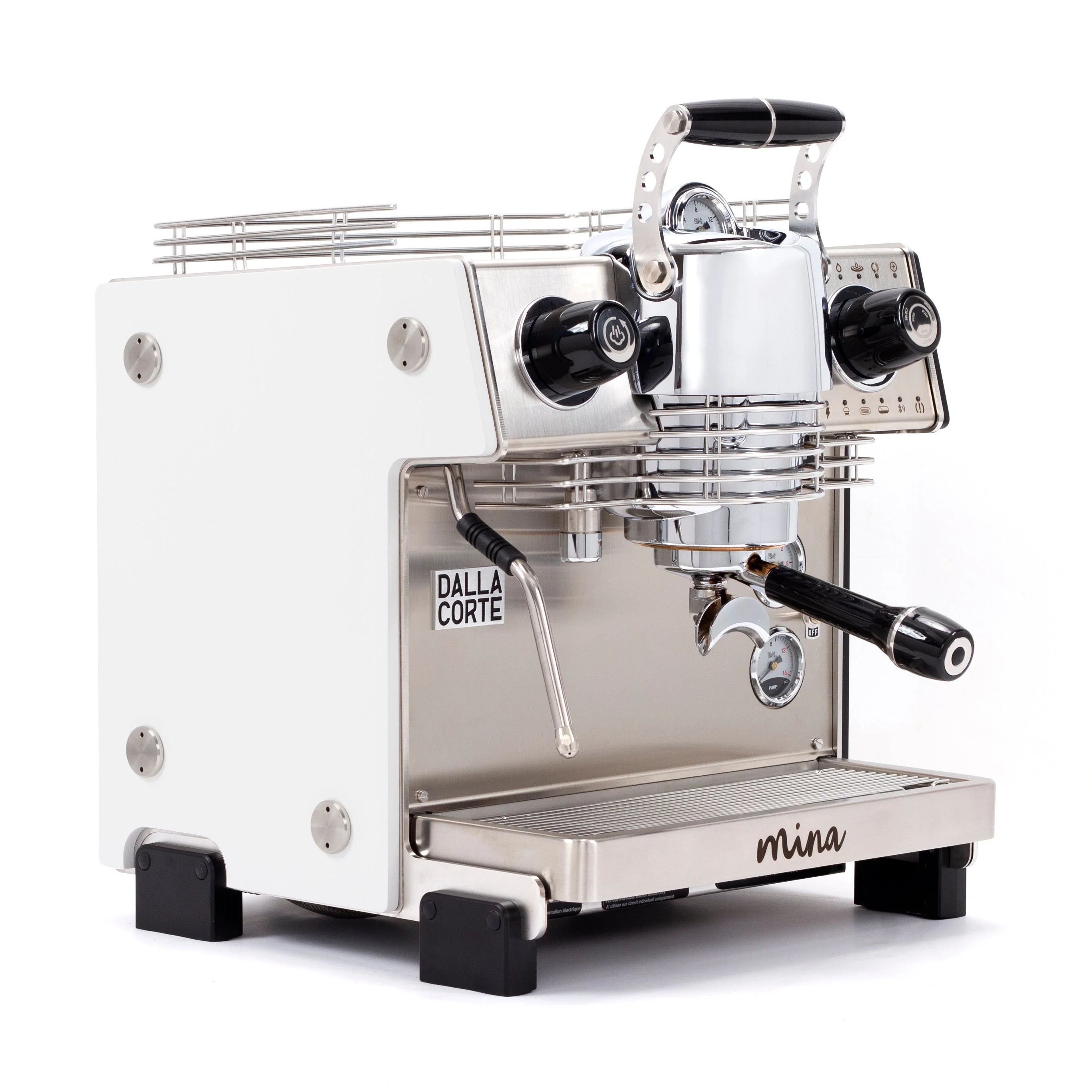

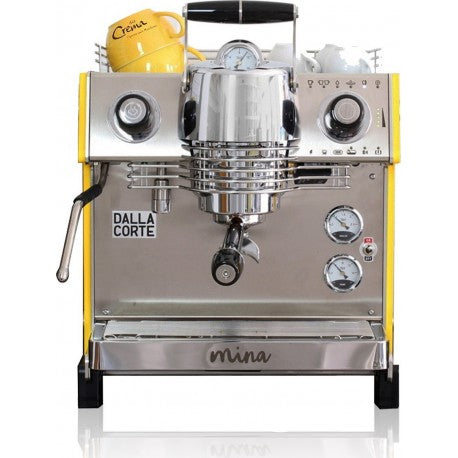

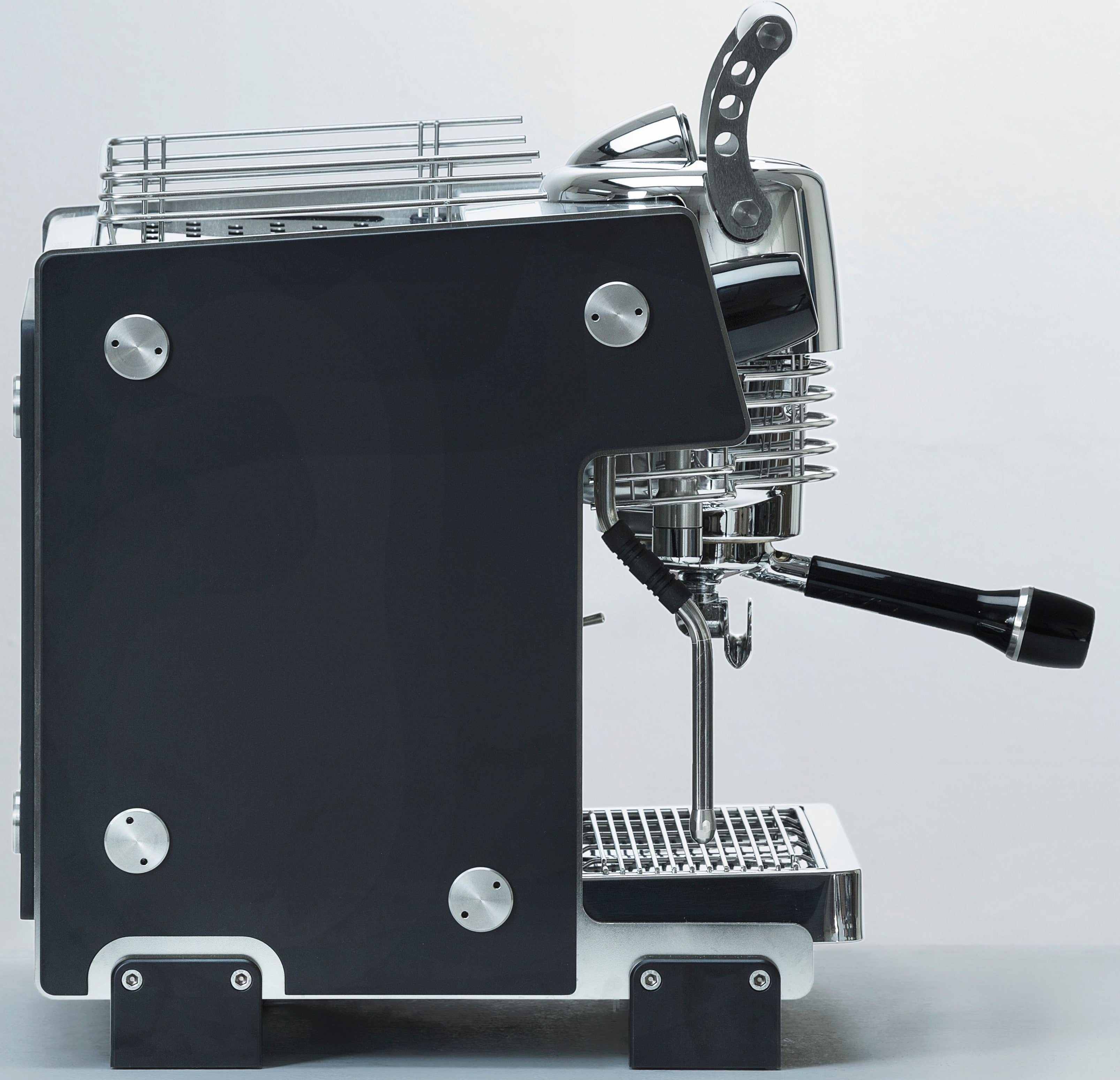

Dalla Corte Mina
Dalla Corta Mina
Includes: Free shipping, of your espresso machine Two-year parts & one year bench labor or 90 days in house labor due to defective parts, Installation optional. We can help arrange for a professional service company installer Apon request.
ONE COFFEE, MANY PROFILES
The Dalla Corte Mina is a high end commercial. / Prosumer dual boiler espresso machine with an acute focus on repeatable, consistent results. A manual lever offers control overflow rate, offering the ability to create fundamentally different extraction profiles based on your tastes.
The Mina App opens the door to automatic brewing with flow control and a wealth of adjustable features.
Owning the Dalla Corte Mina
The Dalla Corte Mina is emblematic of Dalla Corte's commitment to superb espresso and everything they have ventured to accomplish. With the arrival of the Mina, things have changed here at the office. There's a kind of frenetic pace, a sort of impatience caused by our excitement to share this machine with our customers. This, of course, may be due in part to all of the coffee it's made for us, but the Mina really is something else and we like it a lot. With it's flow profiling system and incredible ingenuity, we're positive you'll agree.
The key to understanding what the Mina has to offer is at its heart: The DFR (Digital Flow Regulator) and a custom made Flow Meter. This is the first flow meter designed for an espresso machine and it is so accurate that it can measure up to 80 pulses per second.

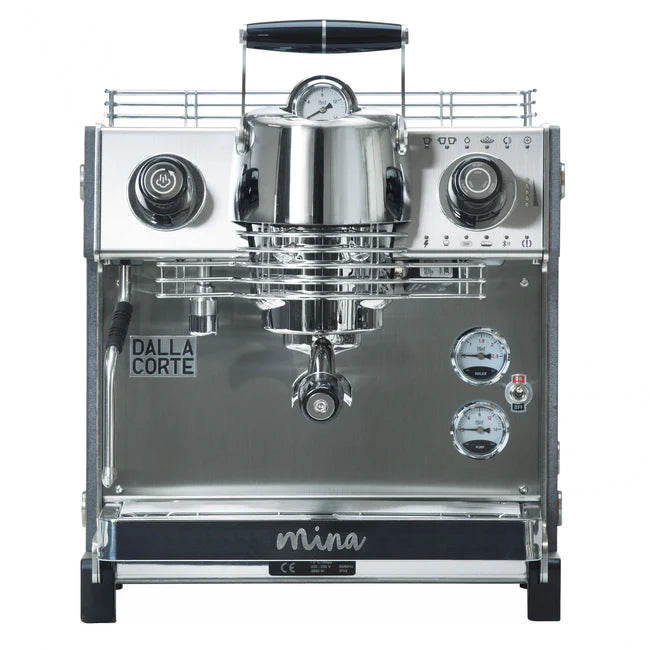

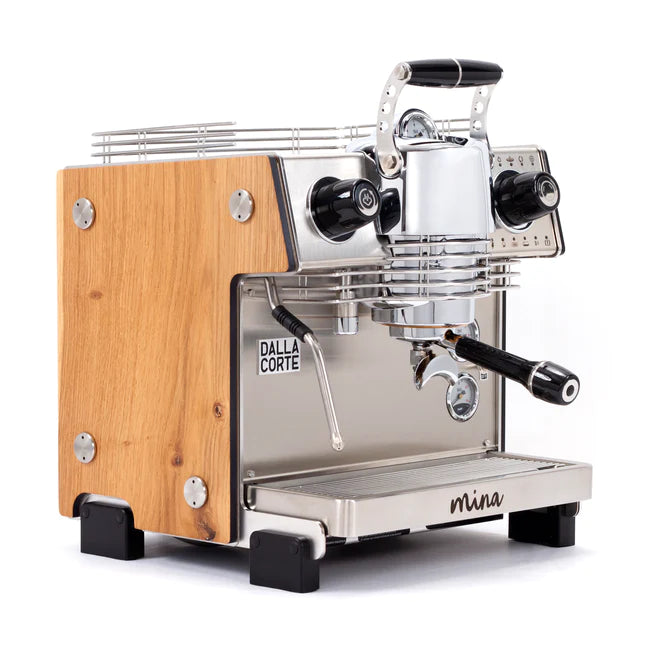

Now, when approaching the Mina, perhaps the first thing you'll notice is the yoke above the brew group. The yoke works with the DFR and Flow Meter. You can use the yoke in both the manual and automatic mode and, when brewing coffee by using the control knob on the right, you will brew in the automatic mode only.
The manual lever allows you to adjust flow rate in five stages during your extraction between 0 and 12 grams/second. Each stage of flow rate is represented by a series of lights on the right side of the machine as a visual aid. By adjusting flow rate, you're granted a new level of control over your extraction, essentially creating a unique extraction profile.\ Great for single origen coffees as well as blends
With the Mina, Dalla Corte's mission was to offer control over your espresso's balance, acidity, sweetness—even its aftertaste and texture. After testing it, we think Dalla Corte has achieved that mission in spades.
Another key strength of the Mina comes from the Dalla Corte Mina App which lets you control flow automatically. When connected to the Dalla Corte Mina App, you can save your favorite profiles, and select which you would prefer your Mina to perform. From here, you can create new profiles or edit existing ones by adjusting flow rate in grams/second and time at each step-in seconds for each of the five steps in your flow profile. With that in mind, we're proud to say our results from the Mina have been the most consistent we've ever experienced.
On the App, you can find a shot timer, group temperature, and steam boiler temperature, as well as a litany of parameters you can freely adjust. Another intriguing feature of the App is its ability to upload flow profiles to any Mina. With multiple Minas, you can create specialized brewing stations, with each machine tuned to get the perfect cup out of a particular coffee. And, with the Mina's NSF certification, it stands to be a powerful addition to any cafe. You can even manage the entire group with a single smart device.
Make your desired coffee profile by controlling every phase of extraction. Mina is the espresso machine you need to pull an espresso that’s exactly as you want it.
PERFORMANCE: The flow meter provides a perfect automatic dosing, but you can also control the extraction manually. Once you’ve found your ideal setting, you can pre-set an automatic dosing or you can extract in manual mode. With the Mina app you can easily set all parameters and connect Mina to the DC System (GCS, MCS, OCS)
. PATENTED TECHNOLOGY: Our patented DFR (Digital Flow Regulation) controls the flow in each stage of extraction. The valve opening can be pre-set with a 0,01mm precision. Pre-infusion can start from 0 bar.

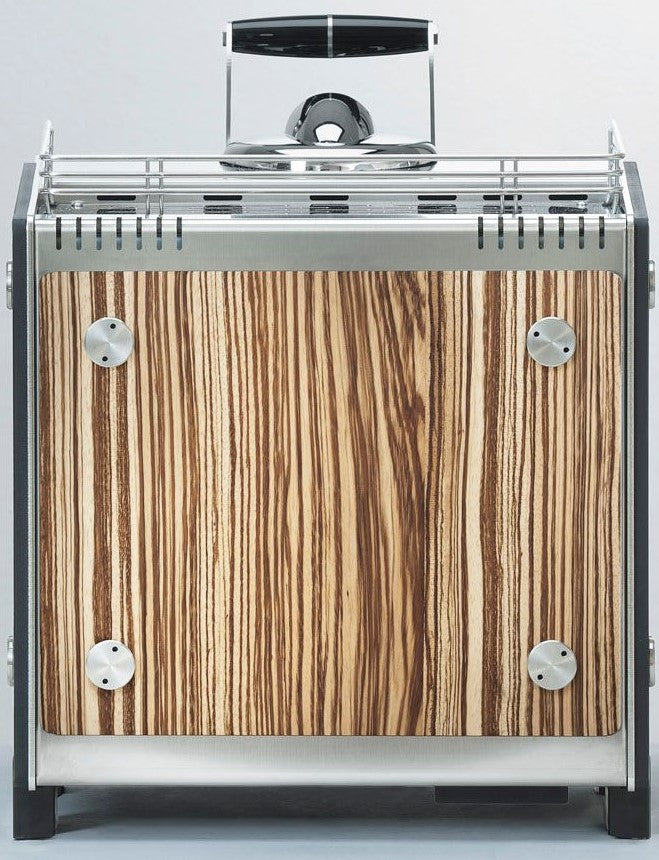

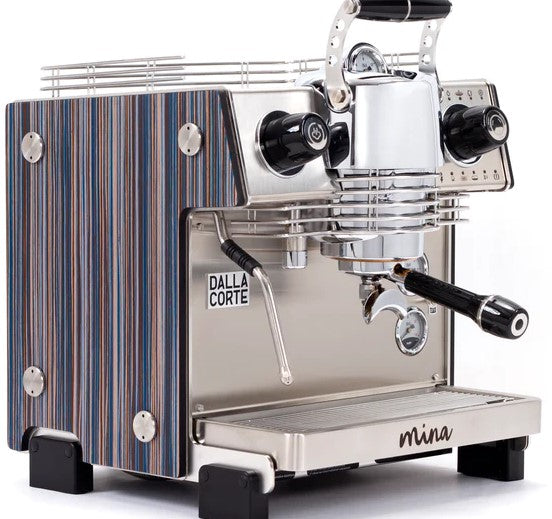

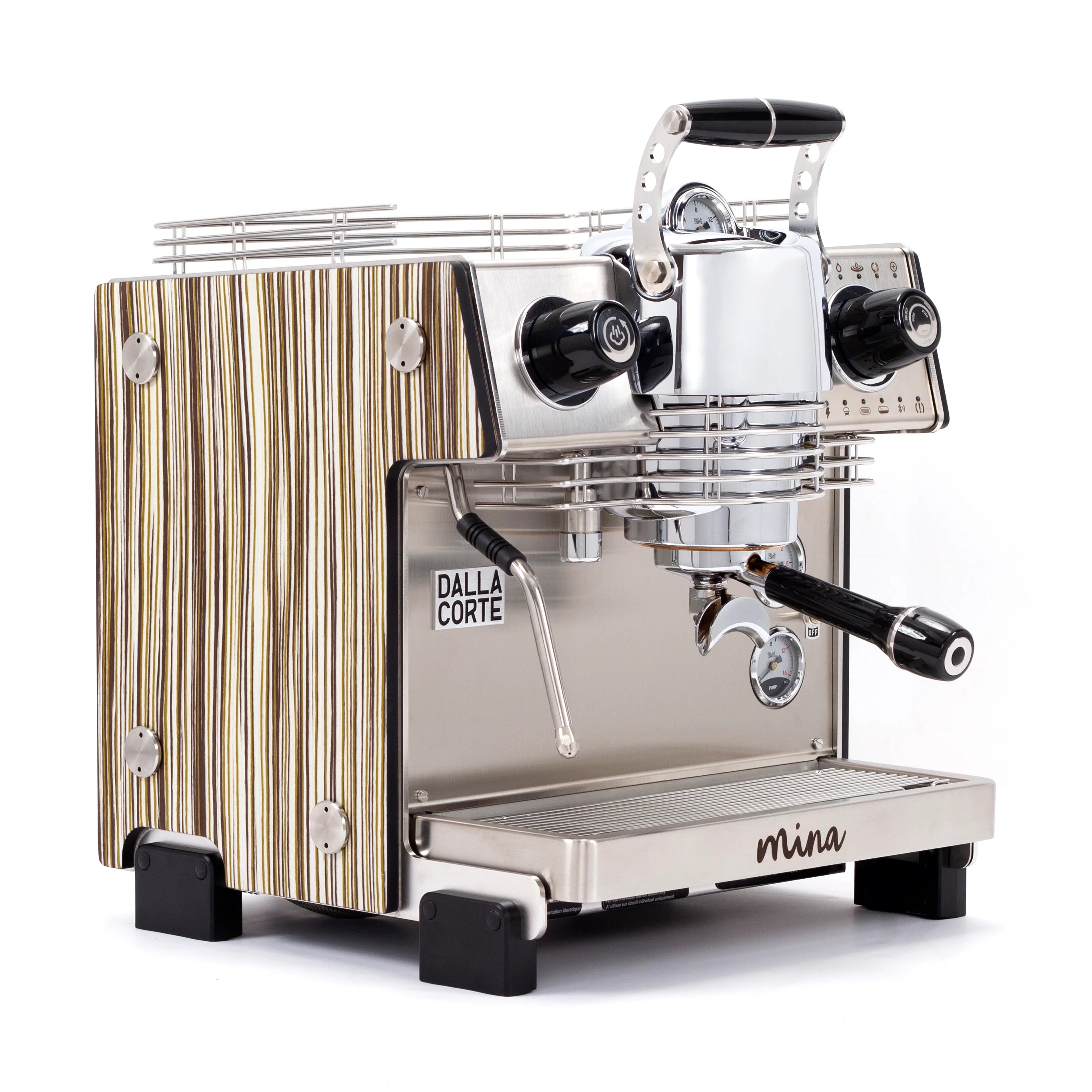

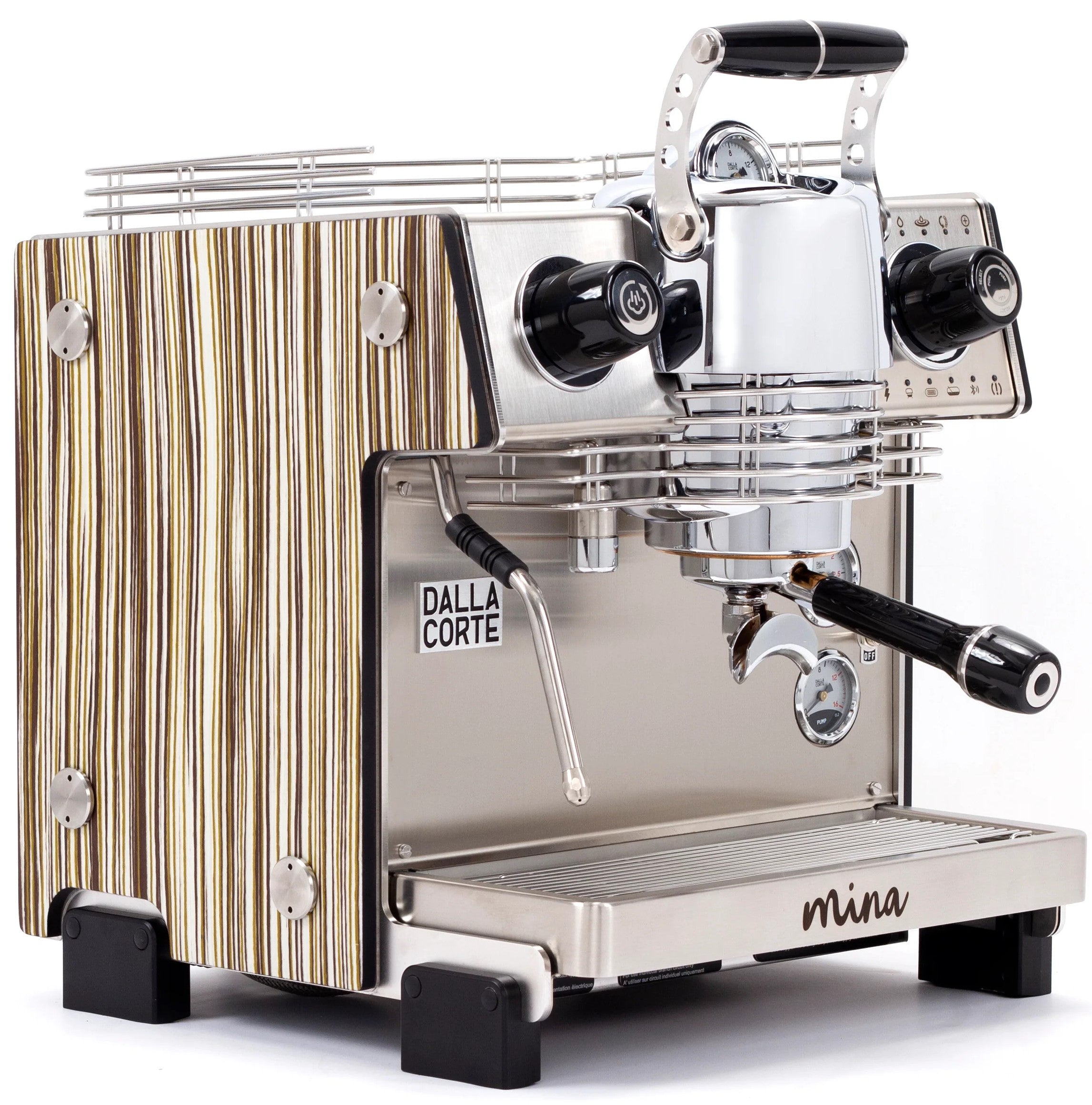

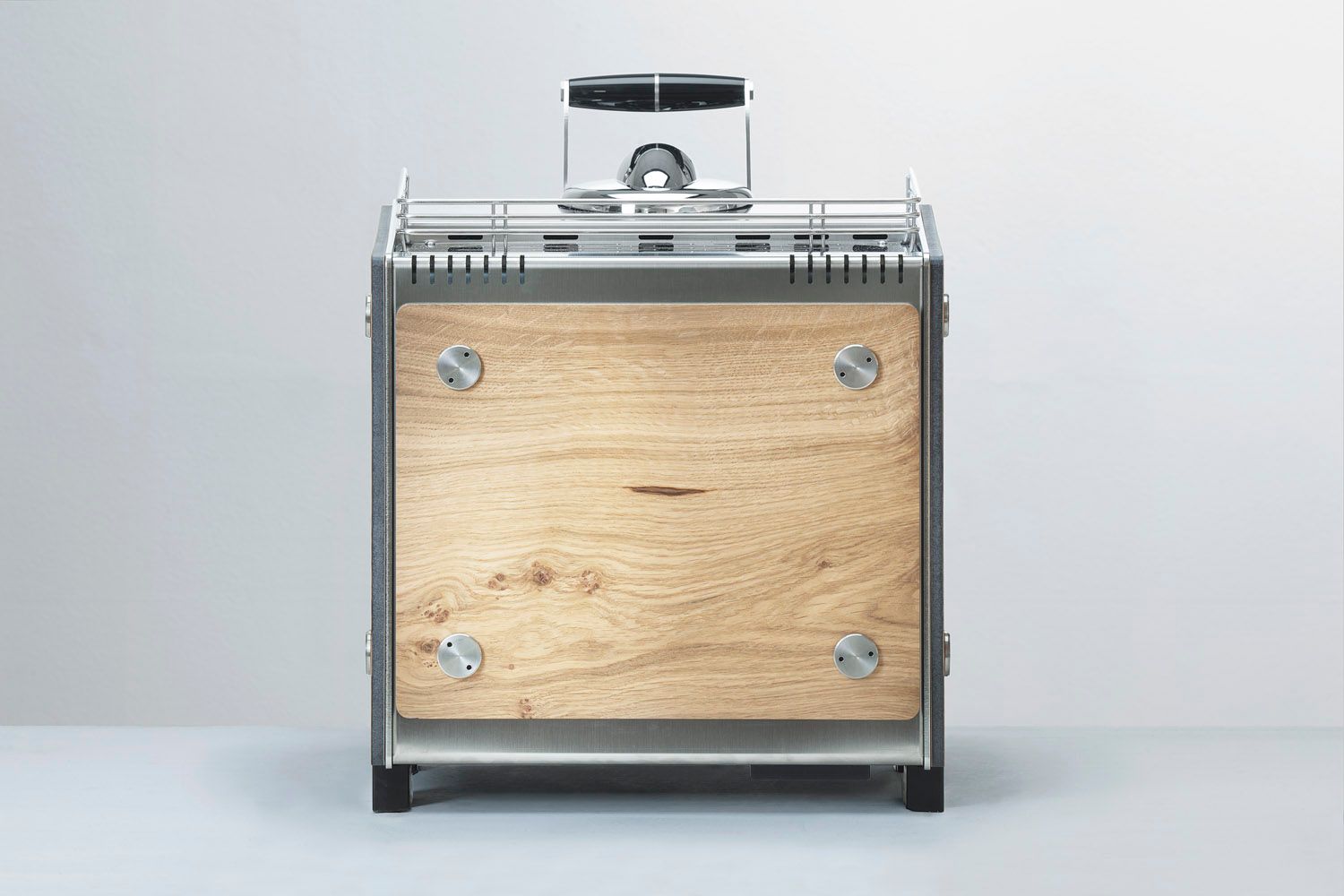

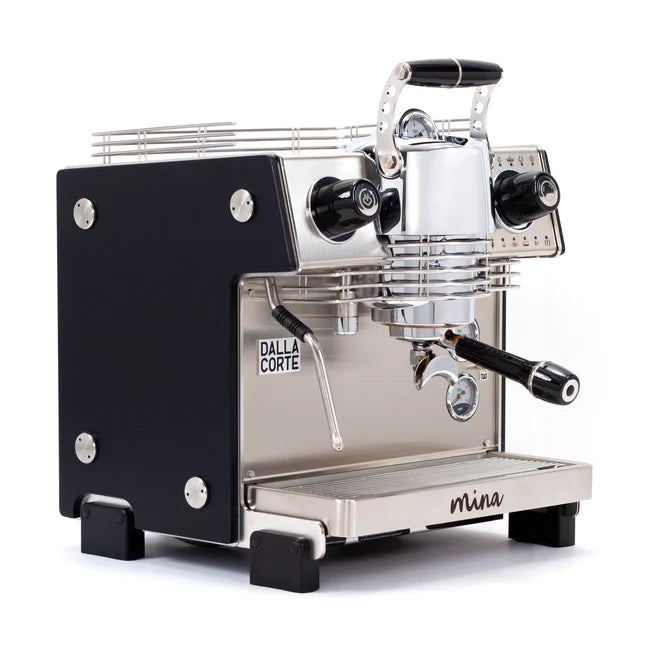

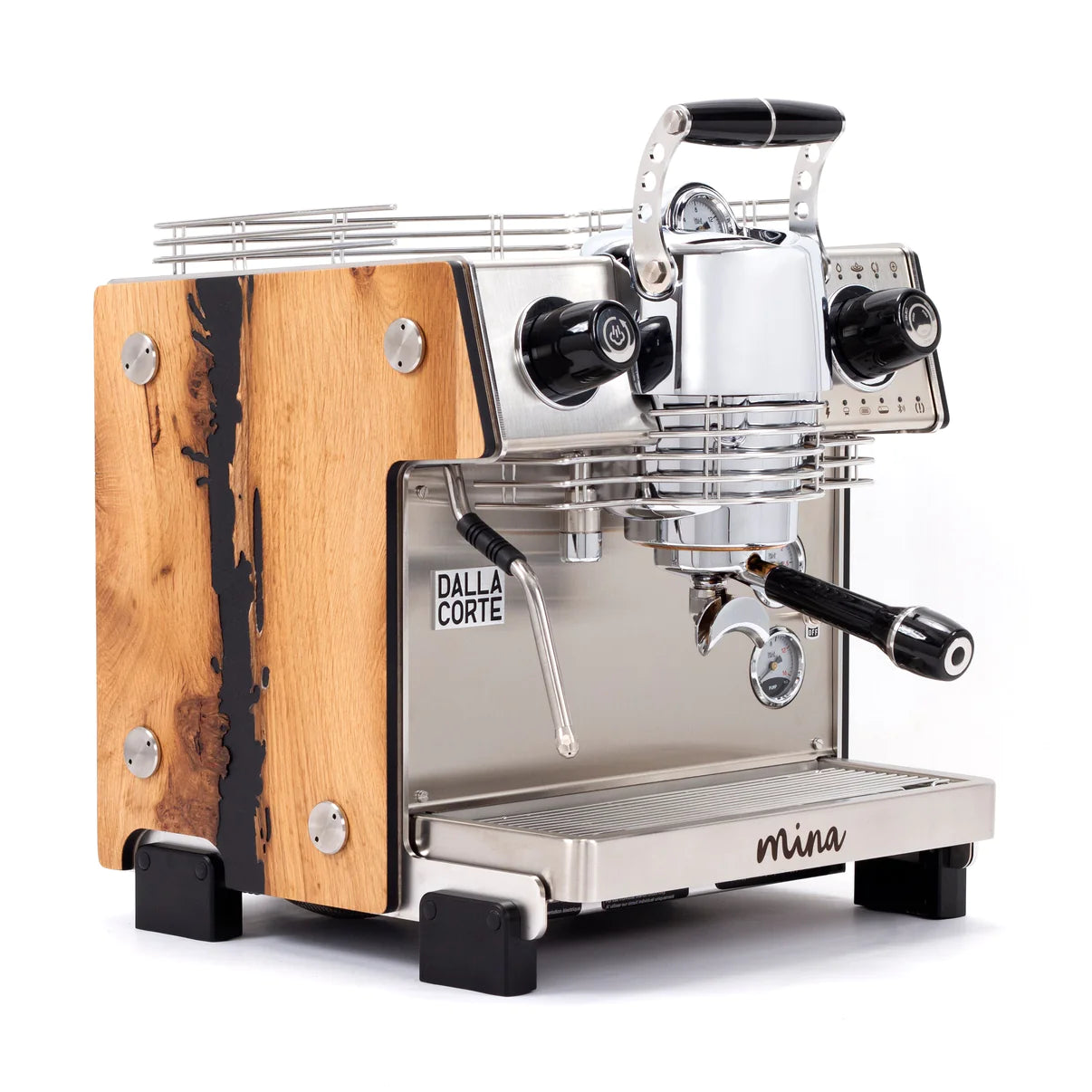

INFINITE POSSIBILITIES: There are infinite ways to customize Mina. Wood, metal and glass, as well as single or multi-color coatings in opaque or transparent, matt or gloss. It’s all up to you and your style!
Features & Specifications
|
Portafilter Material |
Chrome Plated Brass |
|
Number of Portafilters Included |
3 |
|
Portafilter Type |
Custom |
|
Portafilter Weight (lbs) |
1.3 lbs. |
|
Portafilter Diameter |
54 mm-/ 58 option. |
|
Self-Priming Pump |
No |
|
Pump Type |
Rotary Pump |
|
Warranty Service Provider Email |
info@absoluteespresso.com |
|
Warranty Service Provider |
AEP |
|
Warranty Service Provider Phone Number |
866-711-3456 |
|
Manufacturers Warranty Period |
1-Year Parts and Labor |
|
Amps |
12 A |
|
Volt |
110V-120V (US) |
|
Watts |
1437 Watt |
|
Power Cord Length (inches) |
54 in |
|
Power Cord Storage |
No |
|
Steam Boiler Auto-Fill |
Yes |
|
Steam Boiler Heater Location |
Internal |
|
Steam Boiler Insulation |
No |
|
Steam Boiler Material |
Copper |
|
Steam Boiler Orientation |
Horizontal |
|
Steam Boiler Volume (Oz) |
101 fl-oz |
|
Steam Boiler Vacuum Relief Valve |
Yes |
|
Steam Wand Features |
Automatic Steam Control,Insulated Grip,No-Burn |
|
Steam Tip Hole Count |
3 |
|
Steam Wand Material |
Stainless Steel |
|
Steam Wand Movement Type |
Fully Articulated |
|
Steam Wand |
Automatic Frother,Commercial Style |
|
Water Filter Included |
No |
|
Water Source |
External Water Line (Plumbable) |
|
Maximum Incoming Water Pressure (PSI) |
29 PSI |
Protect your warranty & investment.
Protect your factory warranty and machine from harmful hard water minerals that cause calcium build up, & damage to your boiler, heating elements, water passages, and moving parts. This all in 1 filter is the answer for most hard water conditions.
Help the taste of your coffee with a BMT Bestmax premium 5 stage filter with magnesium for improved coffee taste or the standard 4 stage protection filter. When selecting the premium line with magnesium, we recommend a water meter so you know when it's time to change your filter as magnesium will show as a solid on a test strip.
Dial in the setting 1, 2 or 3 on the BWT filter head to match your water hardness and brew system needs. to get the proper protection & longest life based on degree of water hardness. Just twist the all in one cartridge out of the self-closing valve in head and spin the new replacement one in when needed, no water to shut off or turn on before changing,
The BWT 0.5-micron cartridge can lie sideways, set on its base or hang from the wall bracket included,
Recommended sizes based on water hardness and usage.
See our compete BWT accessories discount packages.
Competitive price matching is available for all our products.
Please complete this form when inquiring about best price for your item.
Defend your factory warranty and machine from destructive hard water minerals leading to calcium buildup, and harm to your boiler, heating elements, water passages, and moving parts. This all-in-1 filter is the solution for many hard water conditions.
Enhance coffee flavor with a BMT Bestmax premium 5 stage filter containing magnesium for improved taste or the standard 4 stage protection filter. For the premium option, consider using a water meter to monitor filter change based on magnesium levels.
Set the dial to 1, 2, or 3 on the BWT filter head to align with water hardness and brewing system needs. Achieve ideal protection and lifespan according to water hardness. Replace cartridges effortlessly without water shutdown.
The BWT 0.5-micron cartridge can rest horizontally, be placed on its base, or be hung from the included wall bracket.
Recommended sizes based on water hardness and usage.
See our compete BWT accessories discount packages.
